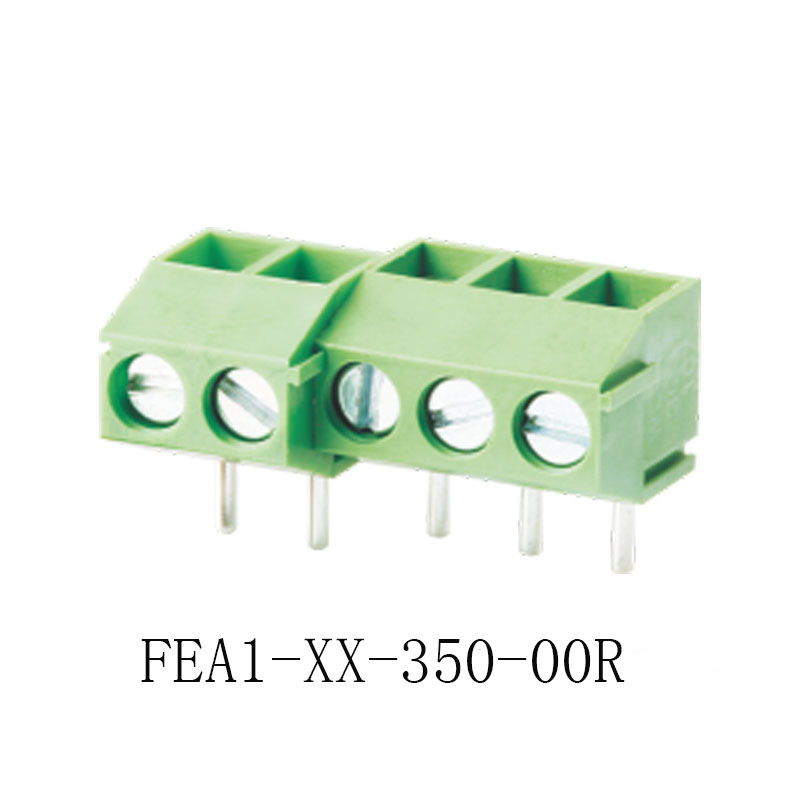

FEA1-XX-350-00R PCB Screw terminal block

  • PCB spring terminal block Rated current: 10 A Rated voltage: 300 V Wire range: 24-18 AWG Pitch: 3.5 mm/3.96 mm Mounting: Wave soldering
  • Poles
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
Products weight: Package quantity:

Details

UL/CUL
Use GroupBCD
Use Group300--
Rated Current [A]10--
Wire Range [AWG]24~18
Dielectric Voltage-Withstand1.6KV

IEC
Overvoltage CategoryIIIIIIII
Contamination Class322
Rated Voltage [V]160250320
Rated Current [A]13.513.513.5
Impulse withstand voltage [KV]2.52.52.5
Conductor cross section [mm²]0.5~1.0

Material
Insulation MaterialPA66
Flame relardant ratingUL94-V0
Conductor MaterialCopper alloy
Plating of conductor surfaceSn plated

Other Data
Pitch/Poles [mm]/[P]3.5 , 3.96/2~24
Stripping Length [mm]5~6
Screw/Torque(Max)[N.m] M2/0.2
Operating temperature [℃]-40~+105
Soldering temperature250℃/5S
Pin dimensions [mm]∅0.8
PCB Hole Diameter [mm]∅1.0
