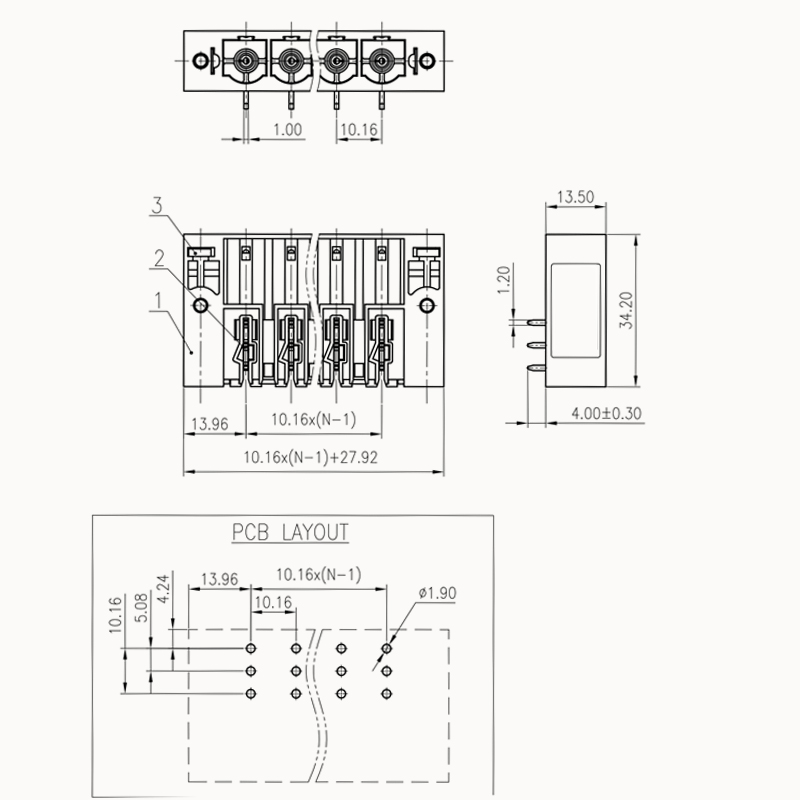

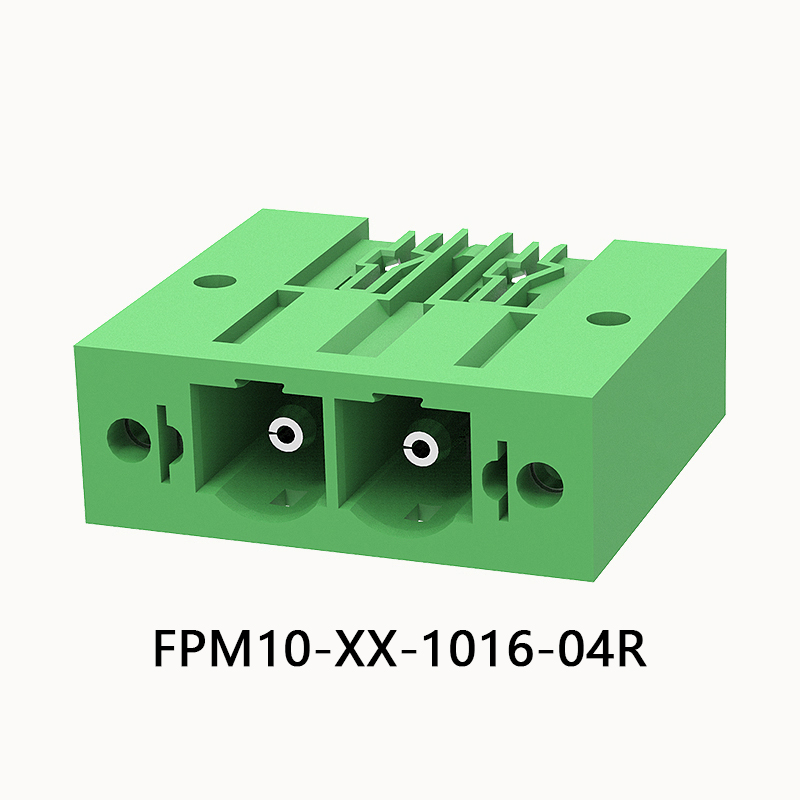

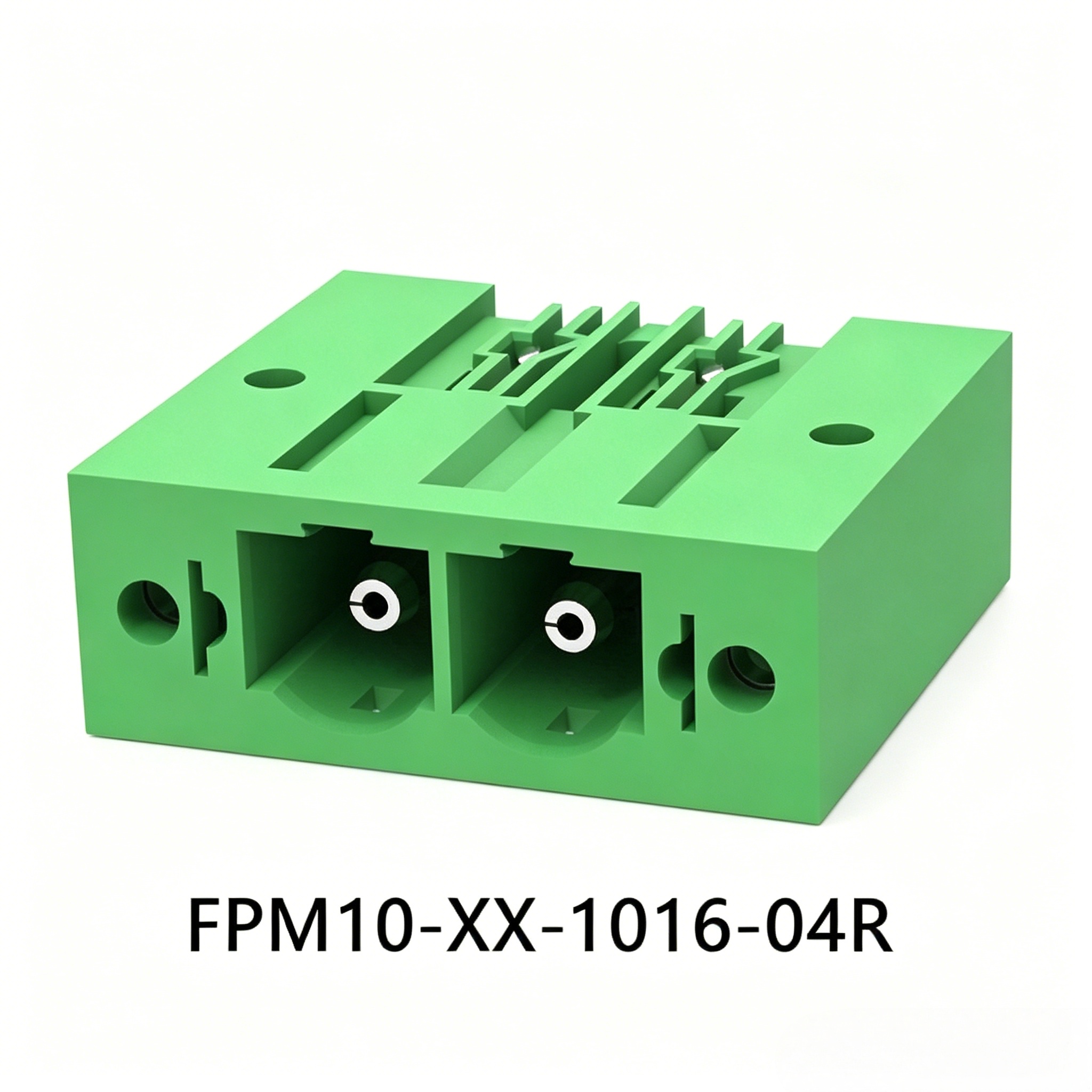

FPM10-XX-1016-04R PLUG-IN TERMINAL BLOCK
Porducts
Contact Us
DONGGUAN CITY AOSI ELECTRONICS .,LTD
Ashley
TEL: +86-15999768769
Helen
TEL: +86-15016766649
Cindy
TEL: +86-15014816629
E-mail : helenqing123@gmail.com
| Soldering data | |
| Soldering method | Wave soldering /Manual soldering |
| Electrical parameters UL | |
| Rated voltage(B) | 300V |
| Rated voltage(C) | 300V |
| Rated voltage(D) | 600V |
| Rated current(B) | 16A |
| Rated current(D) | 5A |
| Rated current(C) | 52A |
| Electrical parameters IEC | |
| Rated voltage | 600V |
| Rated current | 57A |
| Rated voltage(III/3) | 630V |
| Rated surge voltage(III/3) | 6KV |
| Item properties | |
| connection direction | 90° |
| Mouting type | PCB Mount |
| Pin arrangement | 3-row straight arrangement |
| Pluggable or not | Yes |
| Pitch | 10.16mm |
| Number of potentials | 2~24 |
| Number of rows | 1 |
| Material data | |
| Environmenal item | Compliant with REACH/RoHS |
| Contact material | Copper alloy |
| Contact zone metal surface | Sn plated |
| Insulation materials | PA66 |
| Insulating material group | Ⅰ |
| Flammability rating | UL94V-0 |
| Machanical test | |
| Test specification | IEC61984/ UL1059 |
| Environmental data | |
| Ambient temperature(operation) | -40℃~105℃ |
