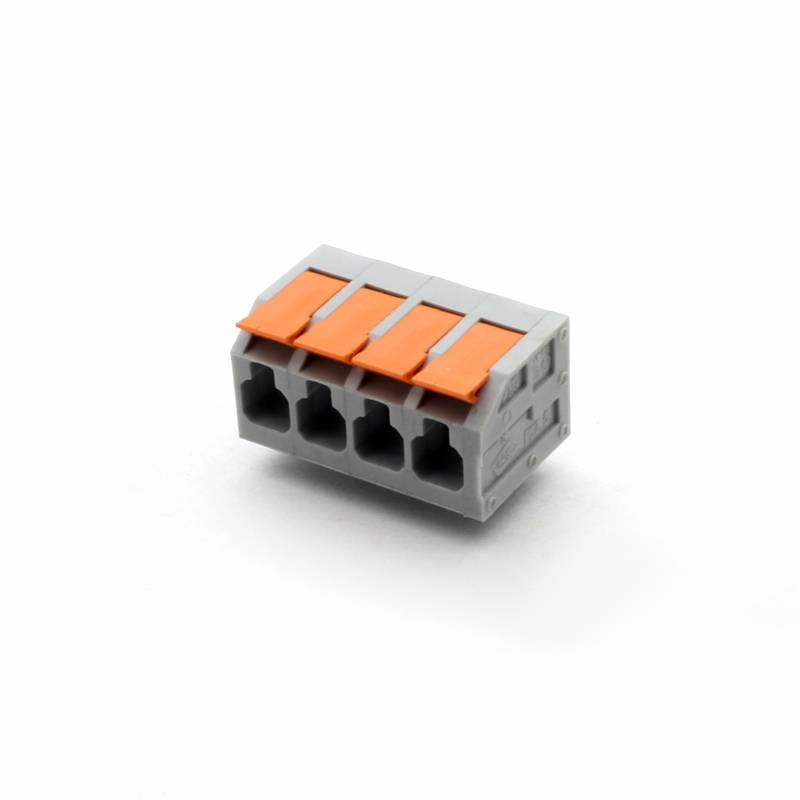

FS2.5-XX-500-2601R PCB Spring Terminal Block
Porducts
Contact Us
DONGGUAN CITY AOSI ELECTRONICS .,LTD
Ashley
TEL: +86-15999768769
Helen
TEL: +86-15016766649
Cindy
TEL: +86-15014816629
E-mail : helenqing123@gmail.com
| UL/CUL(Technical Data) | |||
| (Use Group) | B | C | D |
| (Rated Voltage) [V] | 300 | 450 | 450 |
| (Rated Current) [A] | 15 | 24 | 24 |
| (Wire Range) (solid/Standed) [AWG] | 24~14 | ||
| (Withstanding Voltage) | 2500V | ||
| IEC (Technical Data) | |||
| (Overvoltage Category) | ||| | ||| | ||| |
| (Contamination Class) | 3 | 2 | 2 |
| (Rated Voltage) [V] | 450 | 450 | 450 |
| (Rated Current) [A] | 24 | 24 | 24 |
| (Impulse wiithstand voltagea) [KV] | 4 | ||
| (Conductor cross section) (Solid/flexible) [mm²] | / | ||
| (Material) | |||
| (Insulation Material) | PA66 | ||
| (Imflammability) | UL94V-0 | ||
| (Contactor Material) | Copper alloy | ||
| (Contactive Coating) | Sn Plated | ||
| (Other Data) | |||
| (Pitch) [mm] | 5.00 | ||
| (Poles) [P] | 2~24 | ||
| (Stripping Length) [mm] | 8~9 | ||
| (Screw) /(Torque Max) [N.m] | / | ||
| (Operating temperatur) [℃] | -40~+105 | ||
| (Pin Dimensions) [mm] | 3.55 | ||
| (PCB Hole Diameter) [mm] | / | ||
