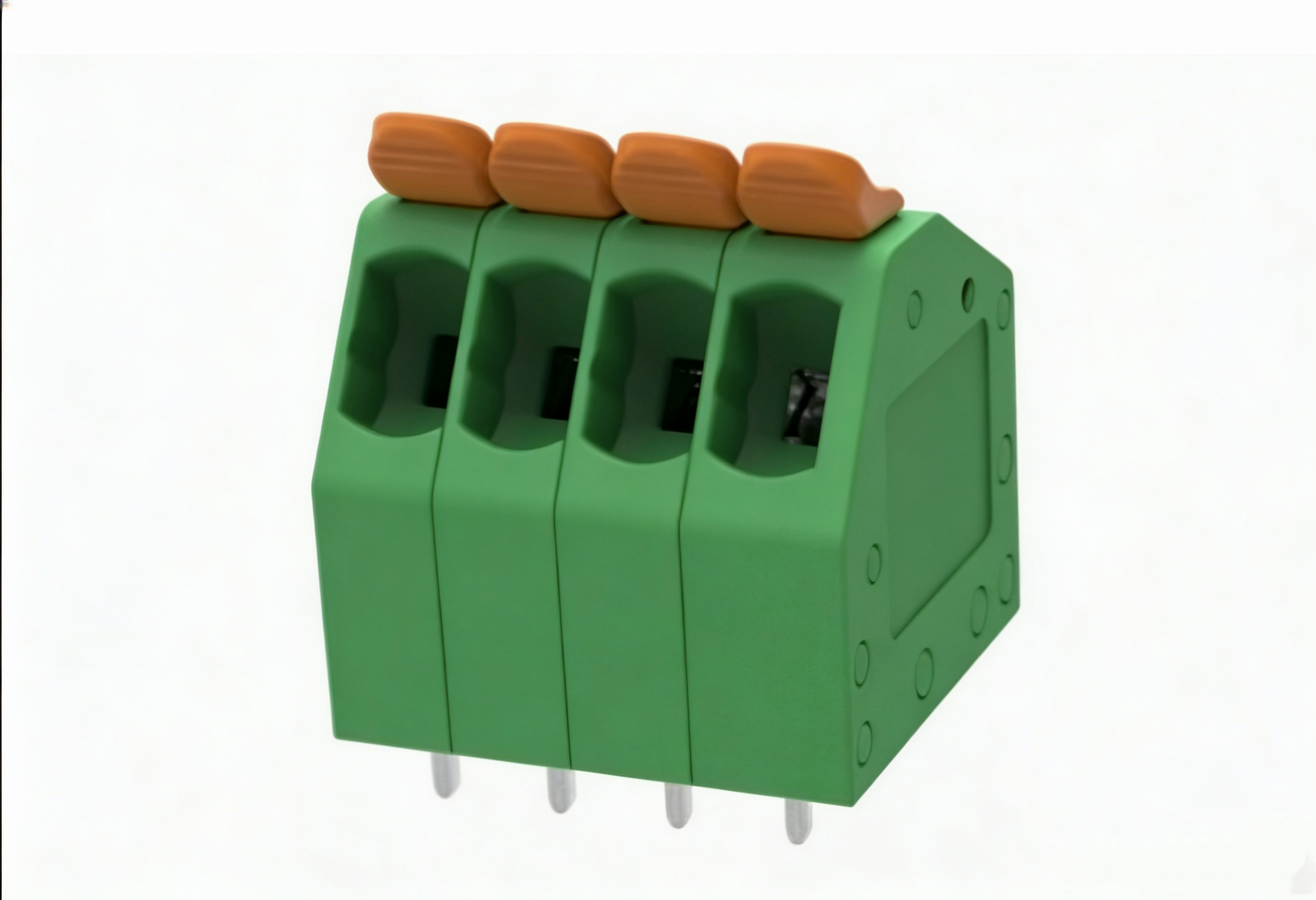

FS4-XX-500-2404S PCB Spring Terminal Block
Porducts
Contact Us
DONGGUAN CITY AOSI ELECTRONICS .,LTD
Ashley
TEL: +86-15999768769
Helen
TEL: +86-15016766649
Cindy
TEL: +86-15014816629
E-mail : helenqing123@gmail.com
| UL/CUL | |||
| Use Group | B | C | D |
| Rate Voltage [V] | 300 | 400 | 630 |
| Rated Current [A] | 32 | 32 | 32 |
| Wire Range [AWG] | 24~12 | ||
| Dielectric Voltage-Withstand | 1.6KV | ||
| IEC | |||
| Overvoltage Category | III | III | III |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage [V] | 300 | 400 | 630 |
| Rated Current [A] | 32 | 32 | 32 |
| Impulse withstand voltage [KV] | 4 | 4 | 4 |
| Conductor cross section [mm²] | 0.2~4 | ||
| Material | |||
| Insulation Material | PA66 | ||
| Flame relardant rating | UL94V-0 | ||
| Conductor Material | Copper alloy | ||
| Plating of conductor surface | Sn plated | ||
| Other Data | |||
| Pitch/Poles [mm]/[P] | 5.00/2~24 | ||
| Stripping Length [mm] | 9~11 | ||
| Screw/Torque(Max)[N.m] | - | ||
| Operating temperature [℃] | -40℃~+105℃ | ||
| Pin dimensions [mm] | - | ||
| PCB Hole Diameter [mm] | Ø2.1 | ||
