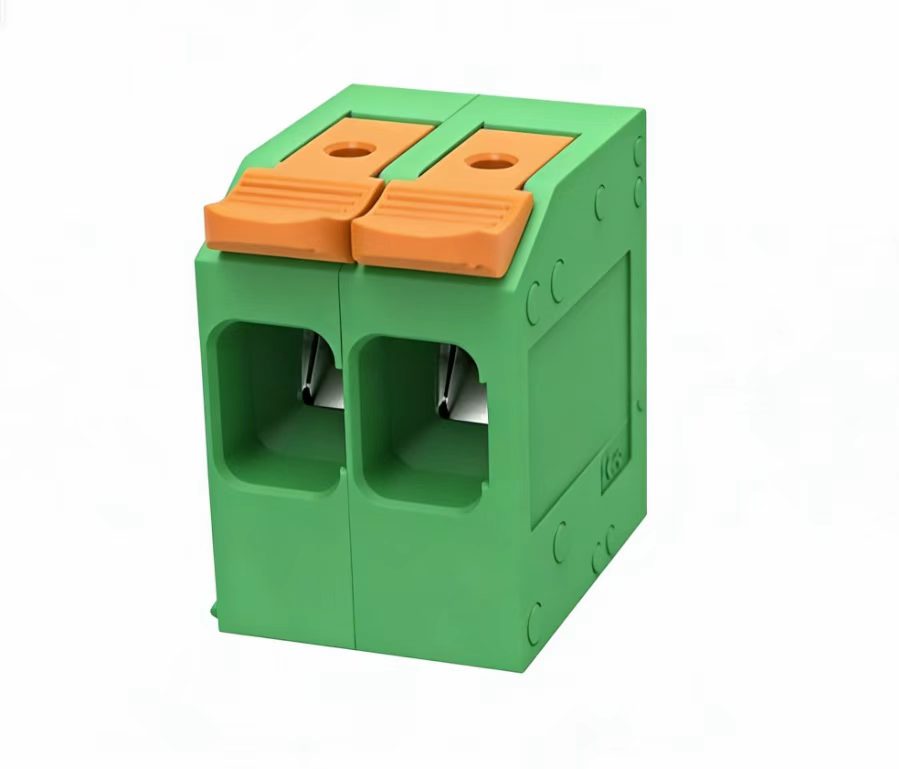

FS6-XX-750-2406R PCB Spring Terminal Block
Porducts
Contact Us
DONGGUAN CITY AOSI ELECTRONICS .,LTD
Ashley
TEL: +86-15999768769
Helen
TEL: +86-15016766649
Cindy
TEL: +86-15014816629
E-mail : helenqing123@gmail.com
| UL/CUL | |||
| Use Group | B | C | D |
| Rate Voltage [V] | 600 | 600 | 600 |
| Rated Current [A] | 41 | 41 | 41 |
| Wire Range [AWG] | 8~24 | ||
| Dielectric Voltage-Withstand | 2.5KV | ||
| IEC | |||
| Overvoltage Category | III | III | III |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage [V] | 800 | 1000 | 1000 |
| Rated Current [A] | 41 | 41 | 41 |
| Impulse withstand voltage [KV] | 4 | 4 | 4 |
| Conductor cross section [mm²] | 0.2~10 | ||
| Material | |||
| Insulation Material | PA66 | ||
| Flame relardant rating | UL94V-0 | ||
| Conductor Material | Copper alloy | ||
| Plating of conductor surface | Sn plated | ||
| Other Data | |||
| Pitch/Poles [mm]/[P] | 7.50/2~24 | ||
| Stripping Length [mm] | 11~13 | ||
| Screw/Torque(Max)[N.m] | - | ||
| Operating temperature [℃] | -40℃~+105℃ | ||
| Pin dimensions [mm] | 4 | ||
| PCB Hole Diameter [mm] | Ø2.0 | ||
