| 技术数据 | |||
| 等级 | B | C | D |
| 等级 | 300 | 300 | 300 |
| 额定电流 [A] | 16 | 12 | 16 |
| 接线范围[AWG] | 22~12 | ||
| 耐电压 | 2.0KV | ||
| 技术参数 | |||
| 过电压类别 | III | III | III |
| 污染等级 | 3 | 2 | 2 |
| 额定电压[V] | 450 | 450 | 250 |
| 额定电流 [A] | 24 | 24 | 24 |
| 额定冲击电压[KV] | 4 | 4 | 4 |
| 导线截面积[硬/柔] [mm²] | 0.5~2.5 | ||
| 材料 | |||
| 绝缘材料 | PA66 | ||
| 阻燃等级 | UL94-V0 | ||
| 导体材料 | Copper alloy | ||
| 导体表面镀层 | Sn plated | ||
| 一般参数 | |||

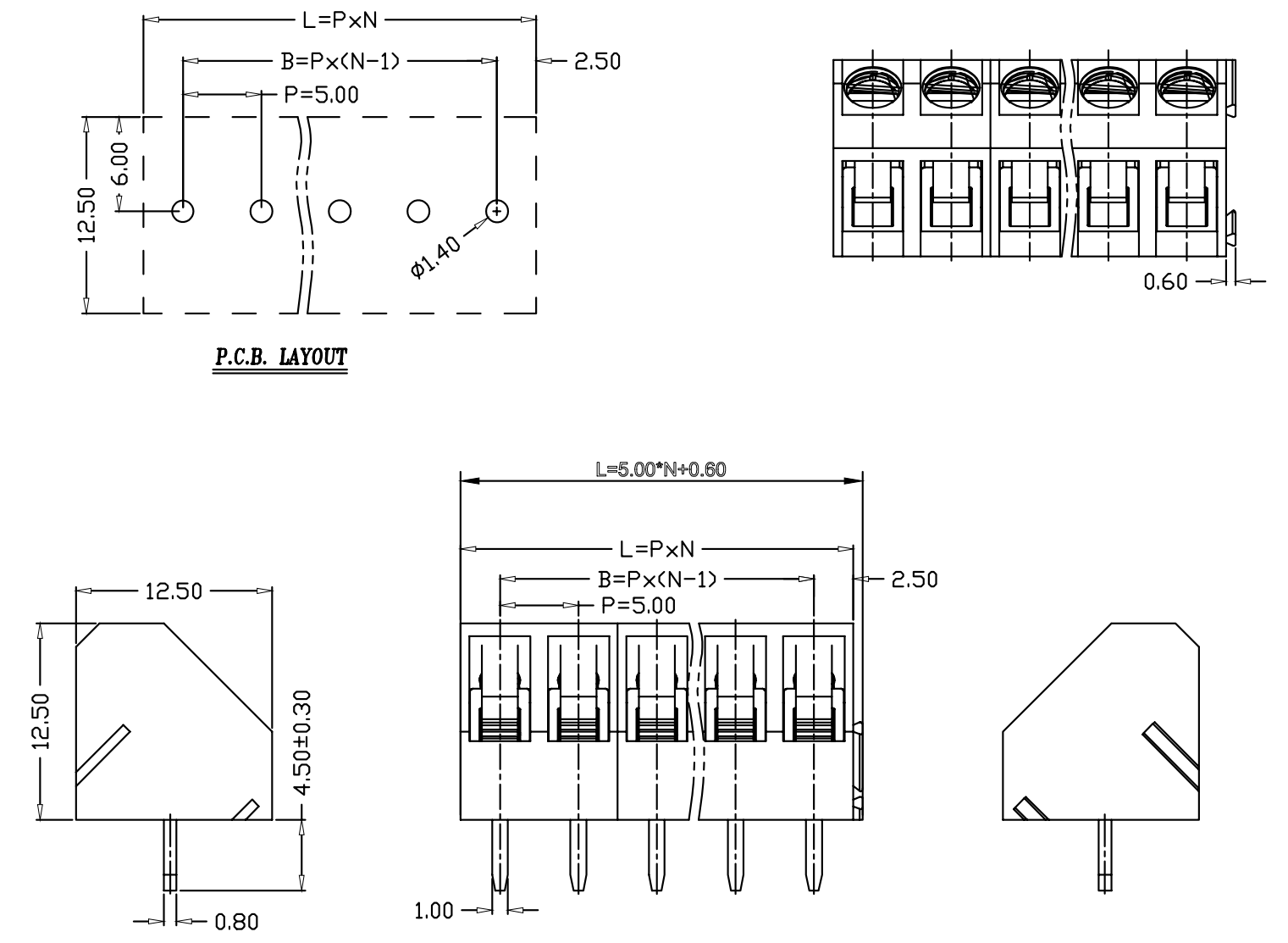

| 间距/极数 [mm]/[P] | 5.0/2~24 | ||
| 剥线长度 [mm] | 7 | ||
| 螺丝/扭矩 (Max)[N.m] | M2.5/0.4 | ||
| 工作温度 [℃] | -40~+105 | ||
| 焊锡温度 | 250℃/5S | ||
| 引针尺寸 [mm] | 0.8*1 | ||
| PCB板孔径[mm] | ∅1.4 | ||
