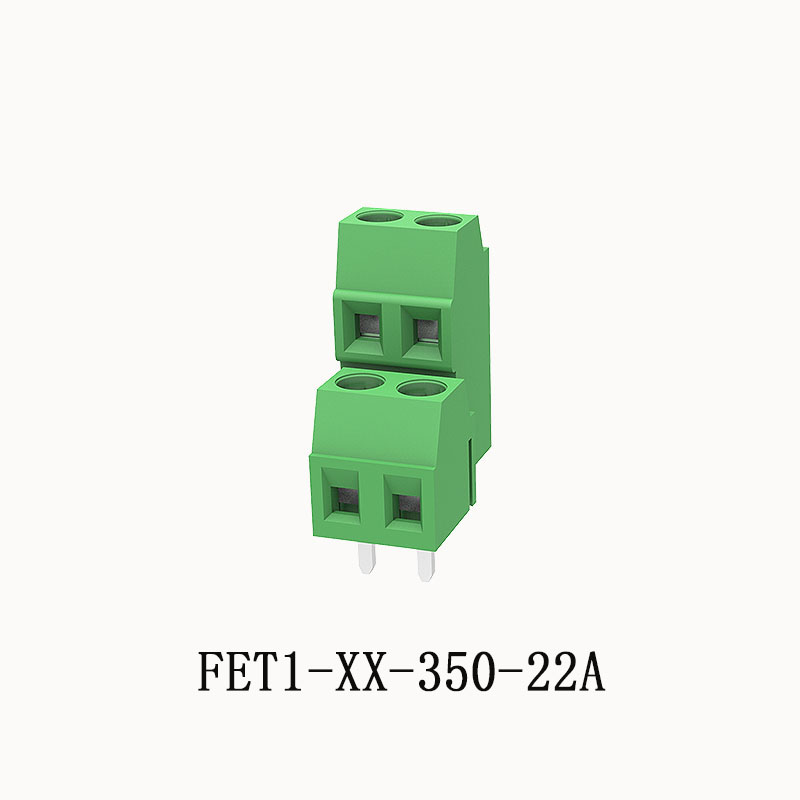

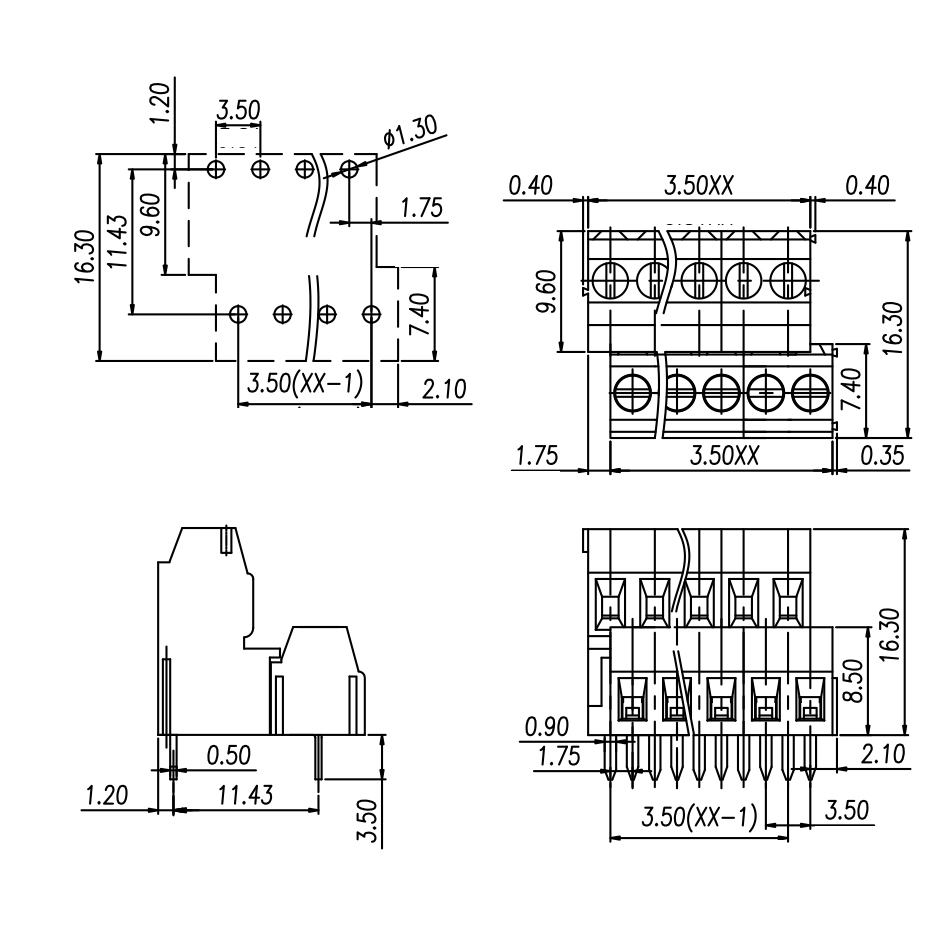

PCB spring terminal block Rated current: 10 A Rated voltage: 300 V Wire range: 28-16 AWG Pitch: 3.5 mm Mounting: Wave soldering
Poles

2×2P
2×3P
2×4P
2×5P
2×6P
2×7P

2×8P
2×9P
2×10P
2×12P
2×13P
2×14P

2×15P
2×16P

Products weight: Package quantity:

UL/CUL
Use Group	B	C	D
Use Group	300	-	300
Rated Current [A]	10	-	10
Wire Range [AWG]	28~16
Dielectric Voltage-Withstand	1.6KV

IEC
Overvoltage Category	III	III	II
Contamination Class	3	2	2
Rated Voltage [V]	160	200	400
Rated Current [A]	13.5	13.5	13..5
Impulse withstand voltage [KV]	2.5	2.5	2.5
Conductor cross section [mm²]	0.5~1.0

Material
Insulation Material	PA66
Flame relardant rating	UL94-V0
Conductor Material	Copper alloy
Plating of conductor surface	Sn plated

Other Data
Pitch/Poles [mm]/[P]	3.5 ,3.81/2-24
Stripping Length [mm]	4-5
Screw/Torque(Max)[N.m]	M2/0.2
Operating temperature [℃]	-40~+105
Soldering temperature	250℃/5S
Pin dimensions [mm]	0.5*0.9
PCB Hole Diameter [mm]	∅1.3
