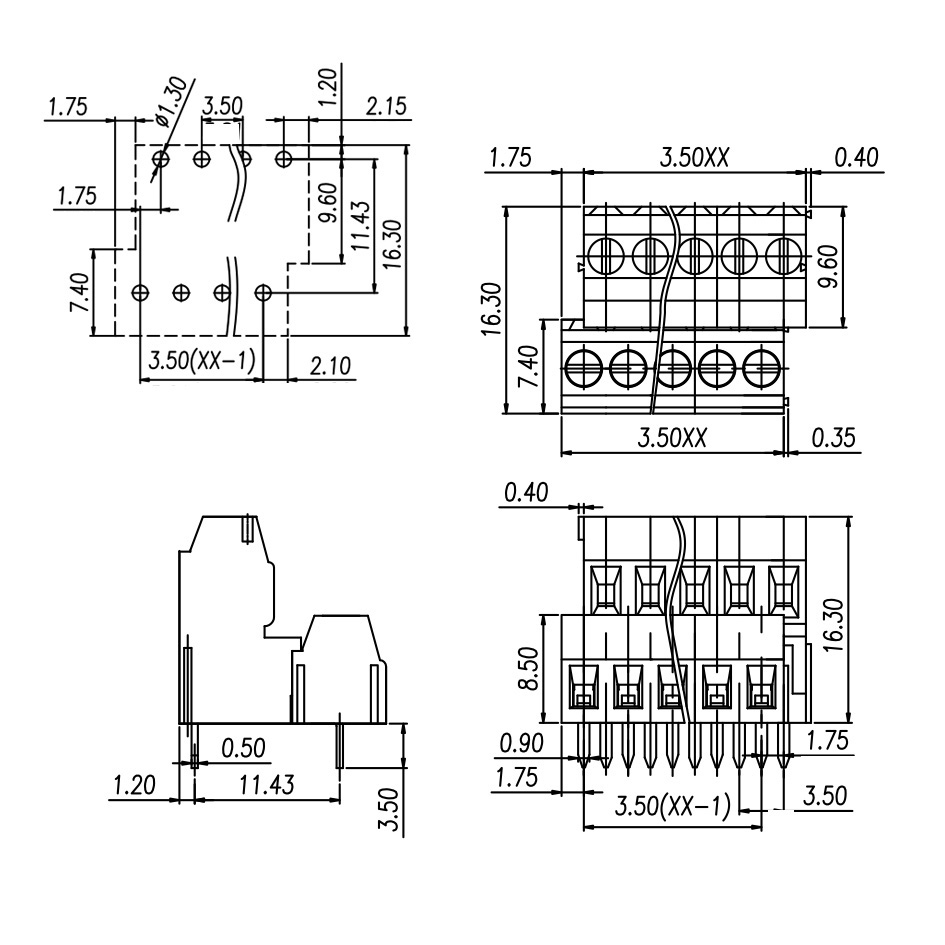

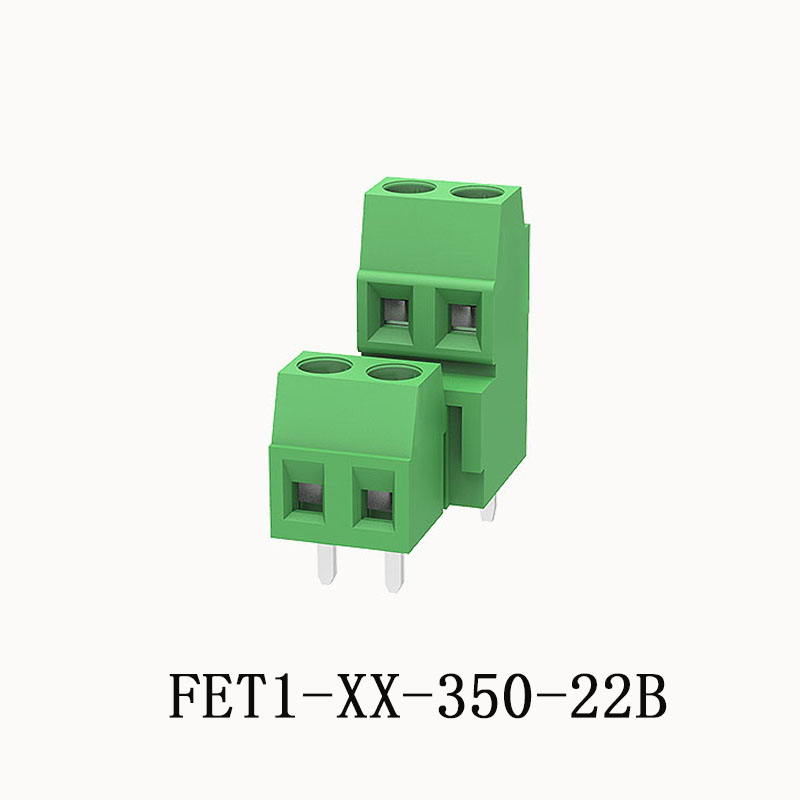

FET1-XX-350-22B SCREW TERMINAL BLOCK

  • PCB spring terminal block Rated current: 10 A Rated voltage: 300 V Wire range: 28-16 AWG Pitch: 3.5 mm Mounting: Wave soldering
  • Poles
    2X2P
    2X3P
    2X4P
    2X5P
    2X6P
    2X10P
    2X11P
    2X12P
    2X20P
Products weight: Package quantity:

Details

UL/CUL
 Use GroupBCD
Use Group300-300
 Rated Current [A]10-10
 Wire Range [AWG]28~16
Dielectric Voltage-Withstand1.6KV

IEC
Overvoltage CategoryIIIIIIII
Contamination Class322
Rated Voltage [V]160200400
Rated Current [A]13.513.513..5
 Impulse withstand voltage [KV]2.52.52.5
 Conductor cross section [mm²]0.5~1.0

 Material
 Insulation MaterialPA66
 Flame relardant ratingUL94-V0
 Conductor MaterialCopper alloy
 Plating of conductor surfaceSn plated

 Other Data
 Pitch/Poles [mm]/[P]3.5 ,3.81/2-24
 Stripping Length [mm]4-5
 Screw/Torque(Max)[N.m] M2/0.2
 Operating temperature [℃]-40~+105
 Soldering temperature250℃/5S
 Pin dimensions [mm]0.5*0.9
 PCB Hole Diameter [mm]∅1.3
