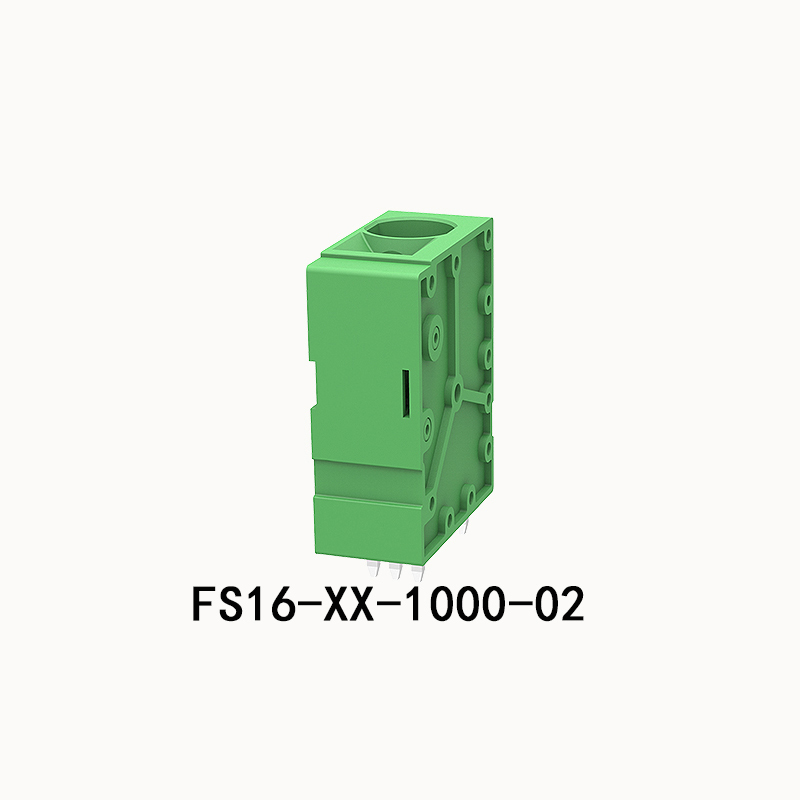

FS16-XX-1000-02 PCB spring terminal block

  • PCB spring terminal blocks,Rated current:76A.Rated voltage (III/2):1000V,pitch:10.0mm,Color:green,Contact surface :Tin
  • Poles
    1P
    2P
    3P
    4P
    5P
    6P
    7P
    8P
    9P
    10P
    11P
    12P
Products weight: Package quantity:

Details

UL/CUL
Use GroupBCD
Use Group600600600
Rated Current [A]51515
Wire Range [AWG]4月18日
Dielectric Voltage-Withstand2.2KV

IEC
Overvoltage CategoryIIIIIIII
Contamination Class322
Rated Voltage [V]100010001000
Rated Current [A]767676
Impulse withstand voltage [KV]888
Conductor cross section [mm²]0.2-16

Material
Inslation MaterialPA66
Flame relardant ratingUL94-V0
Conductor MaterialCopper alloy
Plating of conductor surfaceSn plated

Other Data
Pitch/Poles [mm]/[P]10.0/2-18
Stripping Length [mm]17-18
Screw/Torque(Max)[N.m] /
Operating temperature [℃]-40~+105
Soldering temperature260℃/5S
Pin dimensions [mm]1.2*1.2
PCB Hole Diameter [mm]∅1.7
