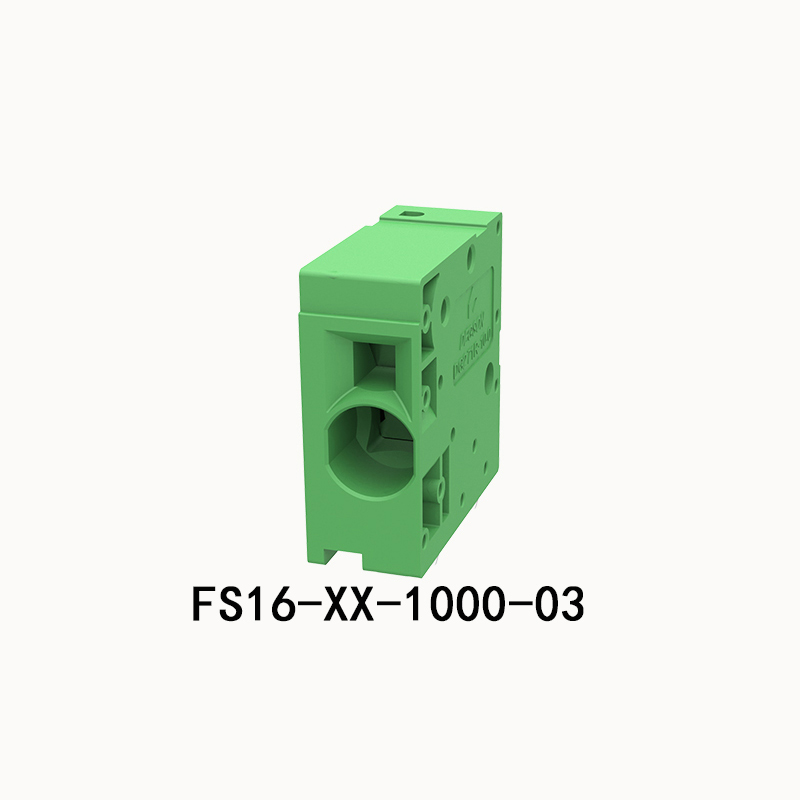

FS16-XX-1000-03 PCB spring terminal block

  • PCB spring terminal blocks,Rated current:76A.Rated voltage (III/2):1000V,pitch:10.0mm,Color:green,Contact surface :Tin
  • Poles
    1P
    2P
    3P
    4P
    5P
    6P
    7P
    8P
    9P
    10P
    11P
    12P
Products weight: Package quantity:

Details

UL/CUL
Use GroupBCD
Rate Voltage [V]1000-1000
Rated Current [A]76-76
Wire Range [AWG]
Dielectric Voltage-Withstand1.6KV

IEC
Overvoltage CategoryIIIIIIII
Contamination Class322
Rated Voltage [V]100010001000
Rated Current [A]767676
Impulse withstand voltage [KV]444
Conductor cross section [mm²]0.2-2.5

 Material
Insulation MaterialPA66
Flame relardant ratingUL94V-0
Conductor MaterialCopper alloy
Plating of conductor surfaceSn plated

Other Data
Pitch/Poles [mm]/[P]10.0/2-24
Stripping Length [mm]7-8
Screw/Torque(Max)[N.m] M3/0.5
Operating temperature [℃]-40~+105
Soldering temperature/
Pin dimensions [mm]/
PCB Hole Diameter [mm]/
