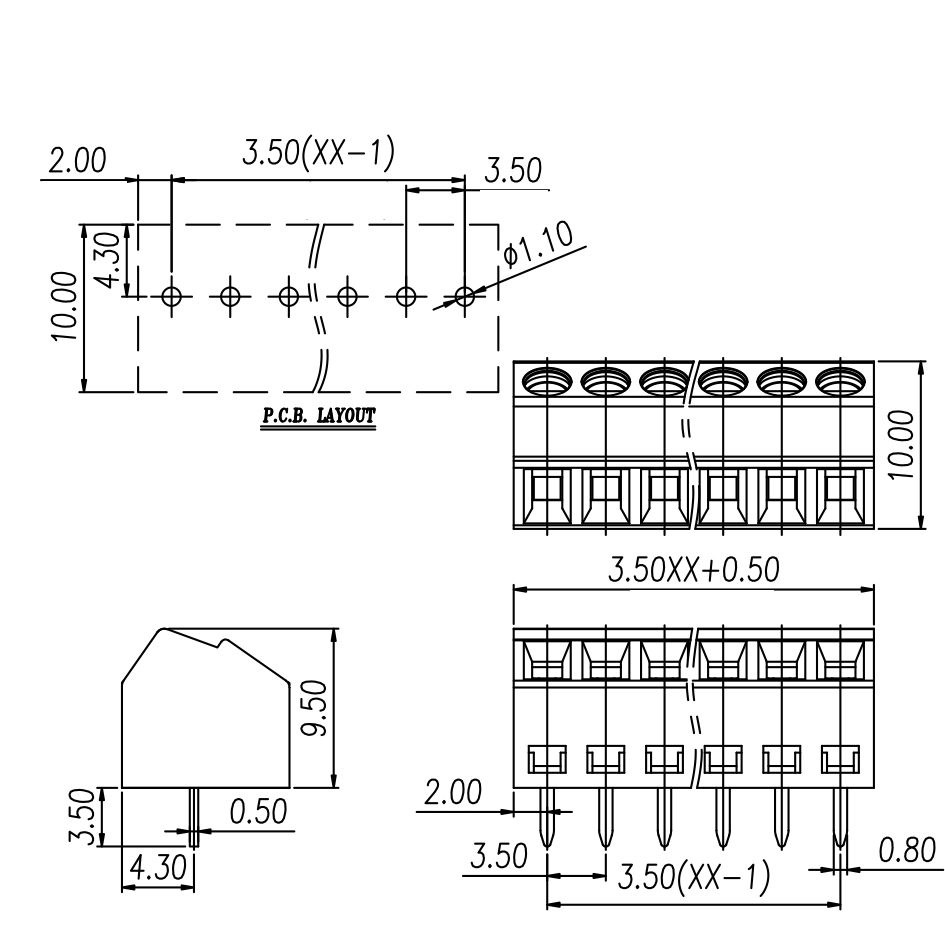

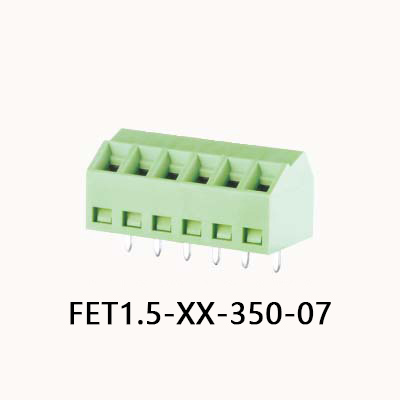

FET1.5-XX-350-07 Pcb Screw terminal block

Products weight: Package quantity:

Details

UL/CUL
 Use GroupBCD
Use Group300-300
Rated Current [A]10-10
Wire Range [AWG]28~16
Dielectric Voltage-Withstand1.6KV

IEC
 Overvoltage CategoryIIIIIIII
 Contamination Class322
Rated Voltage [V]160200400
Rated Current [A]13.513.513..5
Impulse withstand voltage [KV]2.52.52.5
 Conductor cross section [mm²]0.5~1.0

 Material
Insulation MaterialPA66
 Flame relardant ratingUL94-V0
 Conductor MaterialCopper alloy
 Plating of conductor surfaceSn plated

Other Data
Pitch/Poles [mm]/[P]3.5 ,3.81/2-24
 Stripping Length [mm]4-5
Screw/Torque(Max)[N.m] M2/0.2
 Soldering temperature250℃/5S
Pin dimensions [mm]0.5*0.9
PCB Hole Diameter [mm]∅1.3
