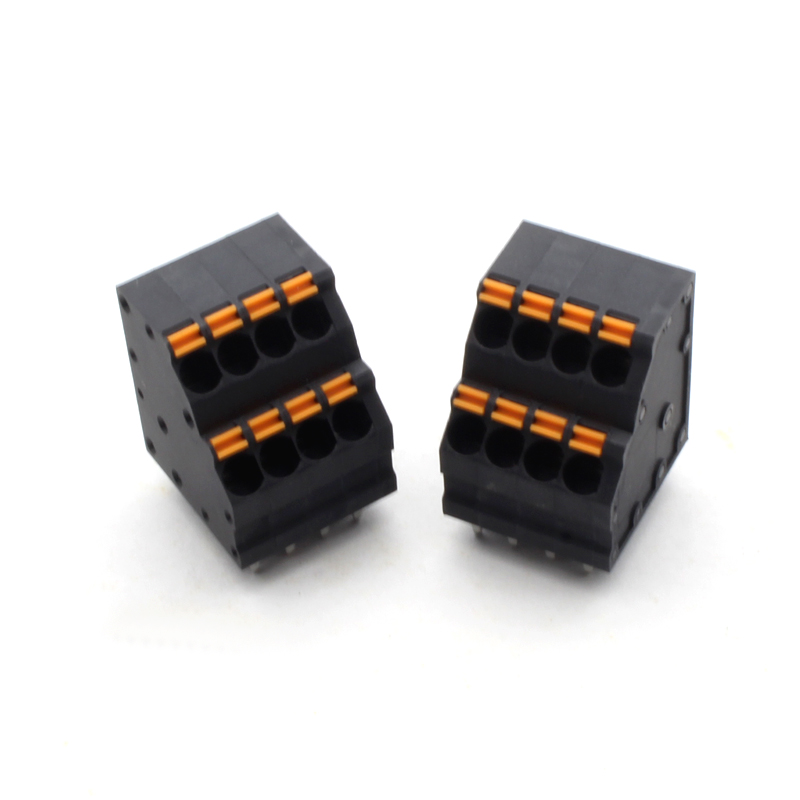

FS1.5-XX-350-28 PCB Spring Terminal Block
Porducts
Contact Us
DONGGUAN CITY AOSI ELECTRONICS .,LTD
Ashley
TEL: +86-15999768769
Helen
TEL: +86-15016766649
Cindy
TEL: +86-15014816629
E-mail : helenqing123@gmail.com
| UL/CUL | |||
| UL/CUL(Technical Data) | |||
| (Use Group) | B | C | D |
| (Rated Voltage) [V] | 300 | 300 | |
| (Rated Current) [A] | 10 | 10 | |
| (Wire Range) (solid/Standed) [AWG] | 28~16 | ||
| (Withstanding Voltage) | 1600V | ||
| IEC (Technical Data) | |||
| (Overvoltage Category) | ||| | ||| | ||| |
| (Contamination Class) | 3 | 2 | 2 |
| (Rated Voltage) [V] | 160 | 160 | 320 |
| (Rated Current) [A] | 14 | 14 | 14 |
| (Impulse wiithstand voltagea) [KV] | 4 | ||
| (Conductor cross section) (Solid/flexible) [mm²] | / | ||
| (Material) | |||
| (Insulation Material) | PA66 | ||
| (Imflammability) | UL94V-0 | ||
| (Contactor Material) | Copper alloy | ||
| (Contactive Coating) | Sn Plated | ||
| (Other Data) | |||

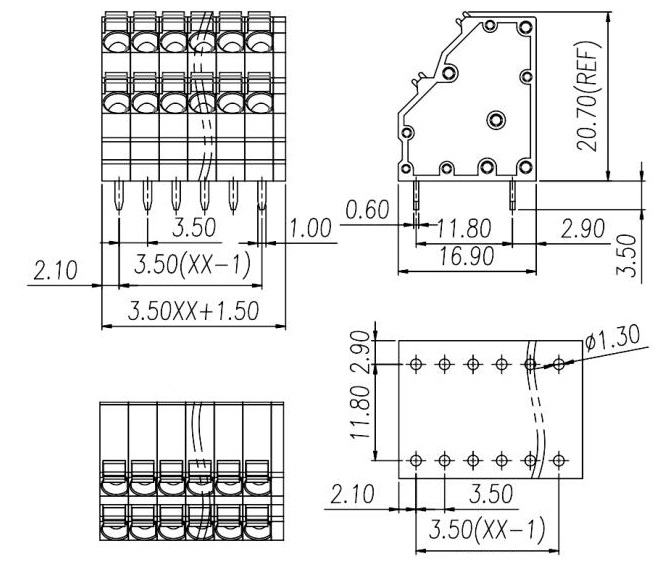

| (Pitch) [mm] | 3.50 | ||
| (Poles) [P] | 2~24 | ||
| (Stripping Length) [mm] | 8~9 | ||
| (Screw) /(Torque Max) [N.m] | |||
| (Operating temperatur) [℃] | -40~+105 | ||
| (Pin Dimensions) [mm] | / | ||
| (PCB Hole Diameter) [mm] | 1.3 | ||
