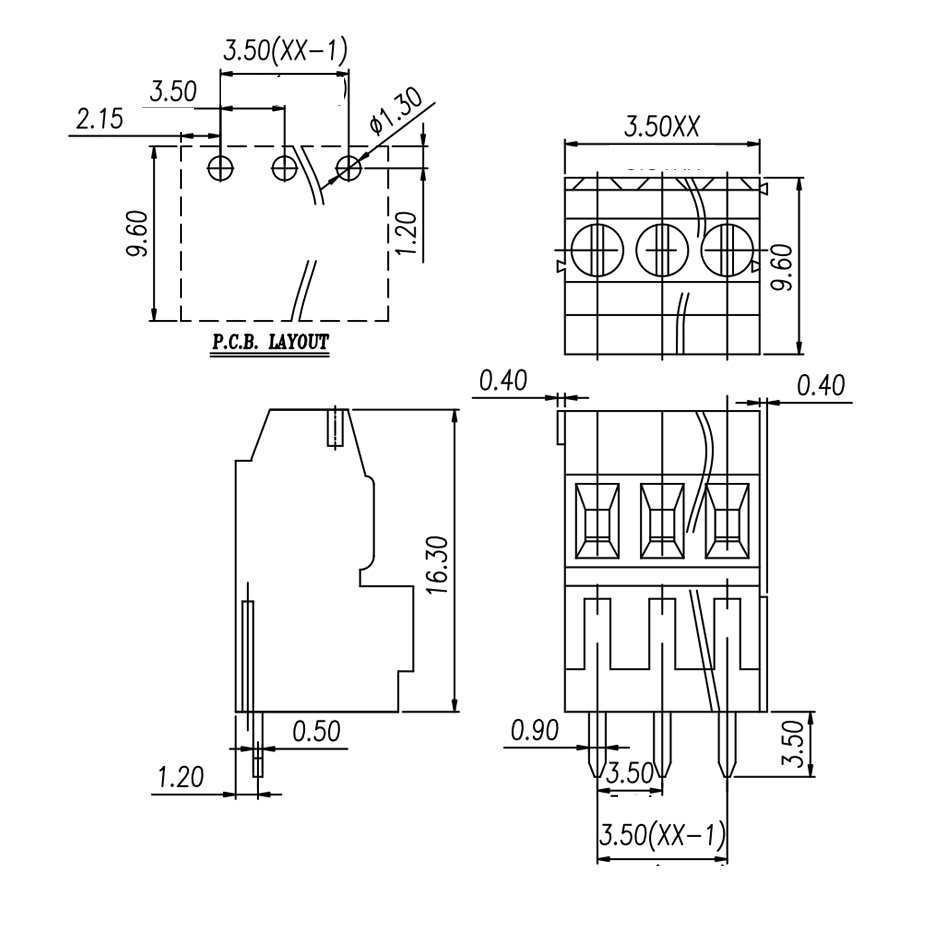

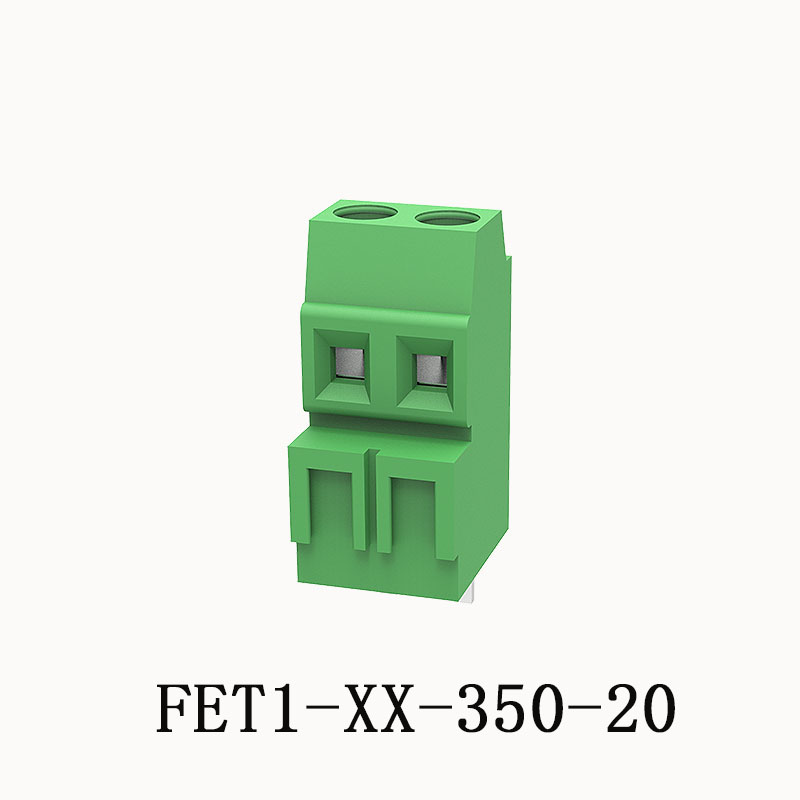

FET1-XX-350-20 SCREW TERMINAL BLOCK

  • PCB spring terminal block Rated current: 10 A Rated voltage: 300 V Wire range: 28-16 AWG Pitch: 3.5 mm Mounting: Wave soldering
  • Poles
    2
    3
    4
    5
    6
    7
    8
    9
    11
    12
    16
Products weight: Package quantity:

Details

UL/CUL
 Use GroupBCD
 Use Group300-300
Rated Current [A]10-10
 Wire Range [AWG]28~16
Dielectric Voltage-Withstand1.6KV

IEC
Overvoltage CategoryIIIIIIII
Contamination Class322
Rated Voltage [V]160200400
Rated Current [A]13.513.513..5
 Impulse withstand voltage [KV]2.52.52.5
 Conductor cross section [mm²]0.5~1.0

 Material
Insulation MaterialPA66
 Flame relardant ratingUL94-V0
 Conductor MaterialCopper alloy
Plating of conductor surfaceSn plated

 Other Data
 Pitch/Poles [mm]/[P]3.5 ,3.81/2-24
Stripping Length [mm]4-5
Screw/Torque(Max)[N.m] M2/0.2
 Operating temperature [℃]-40~+105
Soldering temperature250℃/5S
Pin dimensions [mm]0.5*0.9
PCB Hole Diameter [mm]∅1.3
